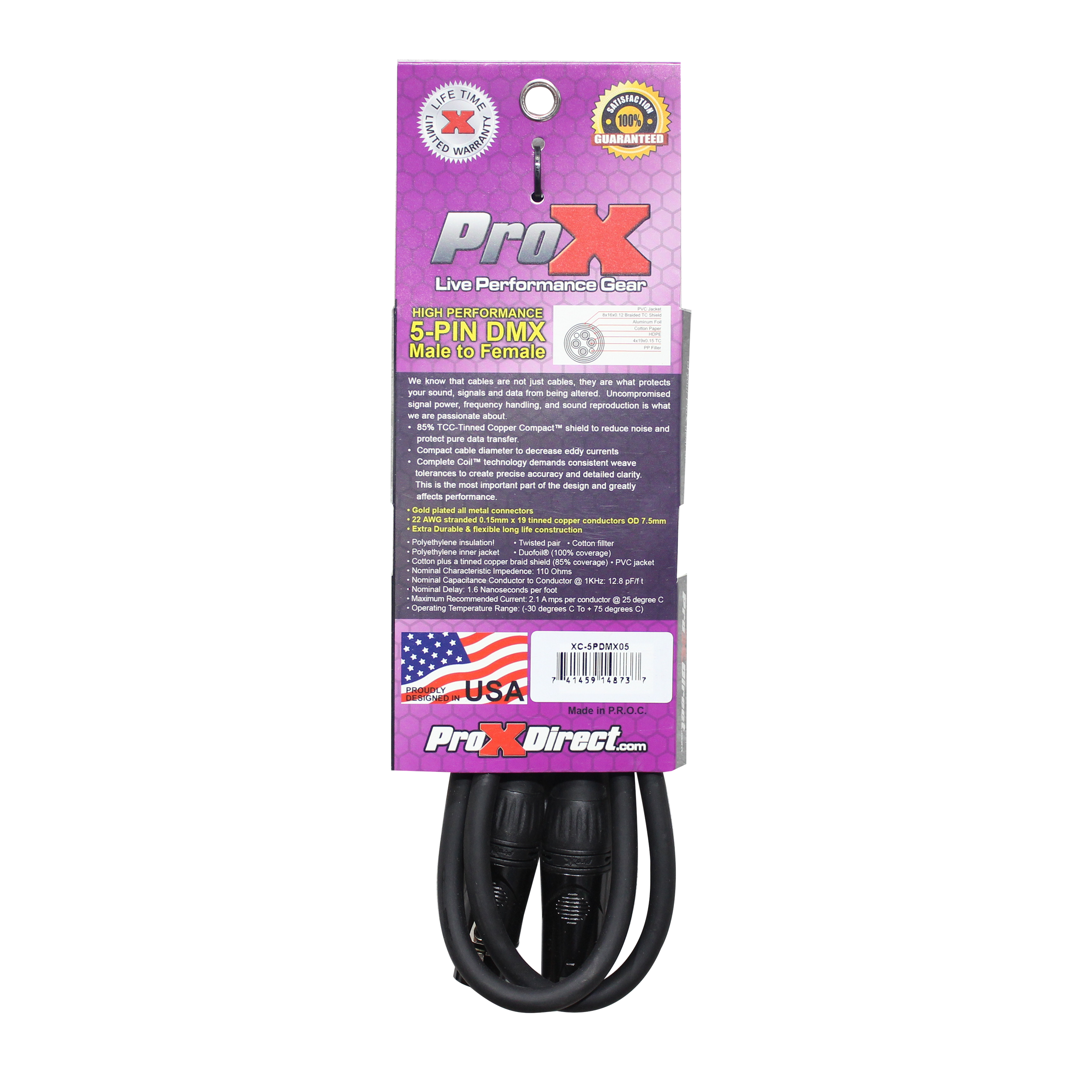

ProX XC-5PDMX05 High Performance Cable
\nThe ProX XC-5PDMX05 cable is ideal for DMX connection applications where a device with a male DMX XLR-5 output/input needs to be connected to a device with a female DMX XLR-5 output/input. 22AWG Oxygen-Free Copper (OFC) conductors for maximum signal transfer. Available at FM Electronics.
\n
\n
\n
Features:
\n
\n - Polyethylene insulation
\n - Dual Twisted Pair Data Cable (4 Conductors)
\n - Polyethylene inner jacket
\n - Duofoil (100% coverage)
\n - Cotton plus a tinned copper braid shield (85% coverage)
\n - PVC jacket for durability
\n - Gold Plated Contacts
\n - ProX Branded, All Metal XLR-5 Connectors
\n - Excellent Durability and Superior Data Transfer
\n - 20 AWG x 4 Oxygen-Free Copper (OFC) conductors
\n - Extra Durable & Flexible Long Life Construction
\n
\n
\n
Specifications:
\n
\n - Polyethylene insulation
\n - Dual Twisted Pair Data Cable (4 Conductors)
\n - Polyethylene inner jacket
\n - Duofoil (100% coverage)
\n - Cotton plus a tinned copper braid shield (85% coverage)
\n - PVC jacket for durability
\n - Nominal Characteristic Impedance: 110 Ohms
\n - Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft
\n - Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
\n - Nominal Velocity of Propagation: 66%
\n - Nominal Delay: 1.6 Nanoseconds per foot
\n - Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
\n - Nominal Outer Shield DC Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
\n - Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
\n - Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
\n - Operating Temperature Range: (-30 degrees C To + 75 degrees C)
\n
\nXC-5PDMX05
\n
\nUPC:
\n
\n741459148737
