Product Description
2 PRO Truss Tower Stage Lift System Package CHAIN HOIST INCLUDES
\n \nProX XTP-GSBPACK3 PRO Truss Tower Stage Lift System Package -Top Block | Hinges | Base | Outriggers and 3.28 Ft. 3 mm Ladder Truss Segment
\n
\nDescription
\n
\n
\n
TÜV Rheinland® is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TÜV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
\n
\nProX Truss products utilize industry-standard dimensions to be compatible to connect to, and work with, many other manufacturers F31/F32/F34 trussing products with conical connectors.
\n
\nTo Fit
\nStandard F34 Square Conical Truss
\n
\nWeight: 265.00 lbs
\nShipping Weight: 285.00 lbs
\n
\nSuggested Shipping Method: LTL
\n
\nUPC
\n019372413622
\n
\n
\n
\n

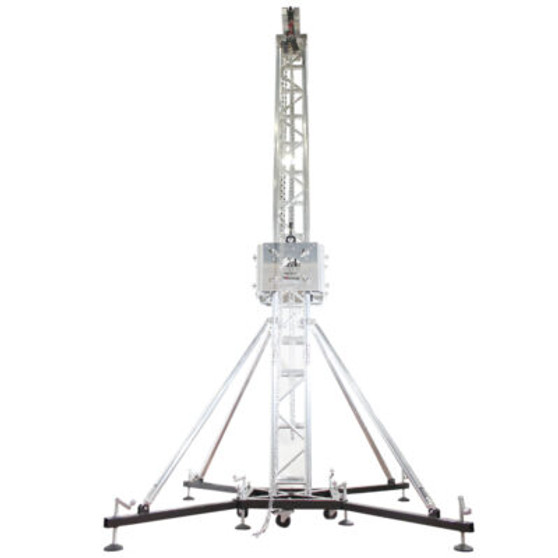

\nThe ProX XTP-GSBPACK3 PRO is a Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block, on a 3' Ladder Truss Segment (3mm Wall). Complete with the Rigging Top. In this package, you have everything you need (except for lift hoist) for one climbable leg in the building and flying of a large scale truss, supporting mid to heavy-grade level stage installations. You get:
\n
\nFeatures
\nProX Trussing provides high strength with exceptional quality control and excellent value.
\n-
\n
- XT-GSB MK2 Rigger Base, with Extendable Feet \n

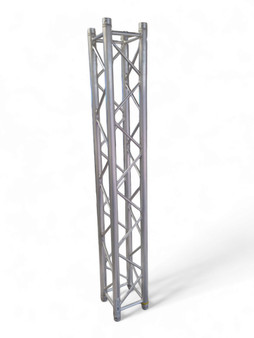

- XT-SQPL328 3.28ft Long LADDER Truss segment (Longer segments available at extra cost) \n
- XT-GSOUT3 3' Outrigger Brace Tubes (4) with clamps \n
- XT-BLOCK Sleeve Block 4-Way Junction box \n
- XT-TOPCM Truss Top with I-Beam mount with chain Pulley wheels \n
- XT-HINGE 4 Hinge block set \n
- (Lift Hoist NOT included) \n
-
\n
- Manufactured to Exacting Specifications in our Own Factory! \n
- Built to exacting specifications \n
- TÜV Certified Welding \n
- Compatible with most Conical Coupled trussing \n
- Includes tapered shear pins with clips \n
-
\n
- Height: 11.42in / 290mm \n
- Width: 11.42in / 290mm \n
- Weight: 21lb/9.5kg per 3.28 ft/1 meter \n
- Main Tube: 2in / 50mm \n
- Premium Tubing - Wall Thickness: 1/8in / 3mm \n
- Braces: .75in / 20mm \n
- Ladder Steps 2in / 50mm \n
- Ladder Step Spacing: 9.84in / 250mm \n
- Material: EN-AWT6 6082 Aluminum \n
- TÜV Certified Aluminium Welding \n
\n
\n TÜV Rheinland® is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TÜV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
\n
\nProX Truss products utilize industry-standard dimensions to be compatible to connect to, and work with, many other manufacturers F31/F32/F34 trussing products with conical connectors.
\n
\nTo Fit
\nStandard F34 Square Conical Truss
\n
\nWeight: 265.00 lbs
\nShipping Weight: 285.00 lbs
\n
\nSuggested Shipping Method: LTL
\n
\nUPC
\n019372413622
\nProduct Downloads \nproduct pack \npdf download
\n \n\n \nItem Contents \n
-
\n
- XT-TOPCM (2) Top Truss Section for Electric Motor or Manual Chain Hoist \nLow Stock \n
- XT-BLOCK-MK2 (2) Ground Support Sleeve Block for F34 Truss Systems \nIn Stock \n
- XT-HINGE (8) F31|F32|F34 Conical Single Tube Hinge Unit Truss roof system \nIn Stock \n
- XT-GSB MK3 (2) \n
- XT-GSOUTS3 (8) 3 Ft. Outrigger Brace for Ground Support Truss Tower \nLow Stock \n
- XT-SQPL328 (2) 3.28 FT 1M F34 Professional Ladder Truss Segment 3mm Tubing \nIn Stock \n
- XT-MCH1TX2-30FT Set of 2: 1 Ton Manual Chain Hoist W/30 Ft (9 M) Chain \n
