Product Description
\n
\n

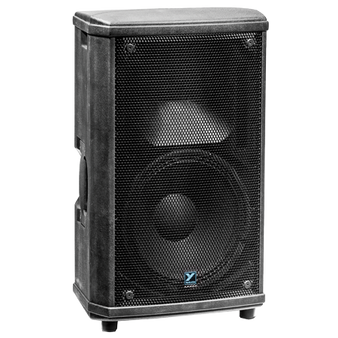

\n12-inch / 1-inch - 300 wattsThe new NX25P-2 offers the best value in a 12-inch and horn active loudspeaker cabinet. The bi-amped 300-watt (Program) power module has a minimum of controls yet provides maximum versatility making the NX25P the ideal solution for many applications.
\n
\n
\n
\n
\n
\n
\nSearch Terms: yorkville nx25p, nx25p yorkville, nx25p, yorkville nx25p price, yorkville nx25, yorkville nx25p review, nx25p-2
\n
\nFeatures
\n-
\n
- Integrated 300 Watt Amplifier \n
- Max SPL 124dB Peak (120dB Continuous) \n
- XLR Microphone Input w/ Gain Control \n
- Combi-jack XLR & 1/4-inch TRS Line Input w/ Gain Control \n
- Two Band EQ \n
- XLR Thru-put \n
- 12-inch Ceramic Magnet Woofer \n
- High quality 1-inch High Frequency Driver \n
- Dual Purpose Cabinet Design (Front-of House or Monitor Orientation) \n
- Ultra-Clear Reproduction \n
- Integrated Flying Points for Installation Applications \n
- Recessed Control / Input Panel \n
- Made in Canada \n
Specifications
\n| System Type | \n2-Way | \n
| Active or Passive | \nActive | \n
| Power Rating (Watts) | \n300 Watts (600 Watts Peak) | \n
| Biampable | \nSelf Powered | \n
| Biamp Operation Only | \nYes | \n
| Max SPL (dB) | \n124dB Peak (120dB Continuous) | \n
| Frequency Response (Hz +/- 3dB) | \n55 - 18k | \n
| Crossover Frequency (Hz) | \n3k | \n
| Driver Configuration | \n12-inch / 1-inch | \n
| HF Driver(s) | \n1.4-inch coil / 1-inch exit PETP Driver | \n
| HF Dispersion (°H x °V) | \n80 x 50 | \n
| HF Protection | \nPeak Limiter | \n
| LF Driver(s) | \n12-inch Ceramic Magnet | \n
| HF Amplifier Type | \nClass A/B | \n
| LF Amplifier Type | \nTwo Tier Class H | \n
| Power Cable | \nYes | \n
| Power Switch | \nYes | \n
| Power Consumption (typ/max) | \n120 / 310 VA | \n
| Inputs | \n2 | \n
| Inputs - 1/4" Jacks | \n1 Line / 1 Mic (XLR Combi jacks) | \n
| Mixer Controls | \nMic Gain \nLine In Gain \nLow and Hi EQ | \n
| Limiter | \nYes | \n
| LED Indicators | \nPower/Activity/Limit | \n
| Feet | \nYes | \n
| Flying Hardware | \n1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback) | \n
| Pole Mount Adapter (1 3/8"-3.5cm) | \nYes | \n
| Enclosure Materials | \nMolded Polypropylene | \n
| Grille | \nPerforated Metal | \n
| Dimensions (DWH xbackW, inches) | \n12.25 x 16 x 26.5 x 9 | \n
| Dimensions (DWH xbackW, cm) | \n31.12 x 40.6 x 67.3 x 22.9 | \n
| Weight (lbs/kg) | \n39 / 17.6 | \n
