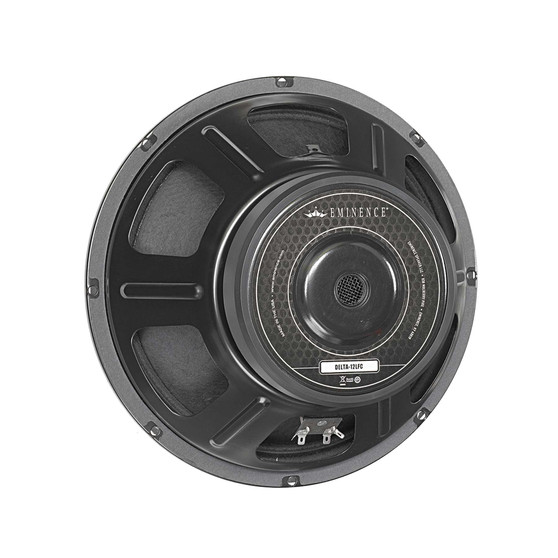

(12 Inch) DELTA-12LFC American Standard Series Speaker
\nThe Delta-12LFC Series Speaker woofer is designed for use as a mid-bass or floor monitor in sealed enclosures within the professional audio industry. It can also double as a suitable option for woofers in bass guitar or PA enclosures of vented types. Available at FM Electronics.
\n
(12 Inch) DELTA-12LFC American Standard Series Speaker
\nThe
DELTA-12LFC Series Speaker is designed to deliver exceptional performance as a mid-bass or floor monitor in sealed enclosures. Its versatile design makes it a reliable option for bass guitar setups or as a woofer in vented PA enclosures. Built for the professional audio industry, this speaker combines power and precision for demanding sound environments. Available now at FM Electronics!
\n
Key Features:
\n
\n - Peak Power: 1000W
\n - RMS Power: 500W
\n - Nominal Impedance: 4 Ω
\n - Frequency Response: 45 Hz – 2.3 kHz
\n - High Sensitivity: 93.1 dB for accurate sound reproduction
\n - Applications: Ideal for sealed enclosures, vented bass guitar cabinets, and PA systems.
\n
\n
Specifications:
\n
\n - Nominal Basket Diameter: 12 inches (305 mm)
\n - Resonance Frequency (Fs): 52 Hz
\n - Voice Coil Diameter: 2.5 inches (64 mm)
\n - Magnet Weight: 56 oz
\n - Maximum Linear Excursion (Xmax): 4.8 mm
\n - Recommended Enclosure Volume:
\n
\n - Sealed: 21-74 liters (0.7-2.6 cu.ft.)
\n - Vented: 28-110 liters (1-3.9 cu.ft.)
\n
\n
\n
\n
Materials and Construction:
\n
\n - Voice Coil: Copper with Kapton former for durability.
\n - Magnet Composition: Ferrite magnet with vented and extended core for improved cooling.
\n - Cone Materials: Treated paper cone with cloth edge and solid paper dust cap.
\n - Basket: Sturdy pressed steel construction.
\n
\n
Mounting Information:
\n
\n - Baffle Hole Diameter: 11.07 inches (281.2 mm)
\n - Depth: 5.35 inches (135.9 mm)
\n - Mounting Holes Diameter: 0.25 inches (6.4 mm)
\n
\n
Enhance Your Sound Today:
\nExperience unmatched audio clarity and power with the
DELTA-12LFC Speaker. Perfect for live events, studios, and professional applications. Buy now at FM Electronics!
\n
\n
\n
\nItem Number: 876358001712
\n
\n
\n
\nPeak power 1000W
\n
\nRMS power 500W
\n
\n
